How it works

← Getting started

MHProto (Machine–Human Protocol) puts the contract first. A feature's behaviour rules, API, examples and verification checks live as plain files in your repository, and npx mhproto view turns them into linked pages your team reviews before agents build and keeps in view while the code changes. Your coding agent works from the same contract: it fetches a compact packet with the exact rules for the endpoint it is changing. npx mhproto verify runs the linked checks and records evidence tied to the current files, so later edits show up as stale and rules without a check show up as gaps.

No hosted service, no account and no AI calls: it's a CLI over files you already review in pull requests.

To install, follow the quick start. Command options and file details are in the reference guide and the file format.

Who it's for

MHProto is built for teams building with coding agents on existing projects, especially full-stack features where frontend and backend share an API. It fits features exposed as HTTP endpoints and described in OpenAPI 3.1.

Coding is no longer the bottleneck. Understanding what's being built is.

• Agents write code faster than teams can follow it. Plans, API shapes and edge cases get decided inside prompts and diffs, where product, design, frontend and backend rarely see them.
• Late changes are expensive. A mismatch between what the frontend expects and what the backend returns is cheap to fix in a contract, and costly once both sides are built.
• Nobody can see which rules still hold. After a few agent PRs, it's unclear which rules have a passing test, which results are out of date and which were never tested.

MHProto keeps the contract where everyone can see it, in a form both people and agents can use:

One feature, end to end

This walkthrough follows one small feature: cancelling an order. The snippets are excerpts from a working project, and the outputs are real.

1. Describe the feature in your repo

Each feature (a capability in the files and CLI) has four parts: numbered behaviour rules, an OpenAPI interface, examples and checks. The interface is one OpenAPI 3.1 file with local $refs (3.0 isn't supported), and every operation in that file belongs to the feature.

mhproto.yaml                       # lists your features and their files
mhproto/
  capabilities/orders/
    spec.md                        # Behaviour: numbered rules
    examples.yaml                  # Examples: given / when / then
    checks.yaml                    # Verification: rules → real tests
  interfaces/openapi.yaml          # Interface: your OpenAPI 3.1

Rules are Markdown bullets with stable IDs:

- **ORDER-CANCEL-1** A customer can cancel their own order while it is `pending`.
- **ORDER-CANCEL-2** Cancelling a `shipped` order returns 409 `not_cancellable`
  and leaves the order unchanged.
- **ORDER-CANCEL-3** Cancelling an already cancelled order returns it unchanged.

Operations and tests refer to those IDs:

# mhproto/interfaces/openapi.yaml (excerpt)
/orders/{orderId}/cancel:
  post:
    operationId: cancelOrder
    x-mhproto-rules: [ORDER-CANCEL-1, ORDER-CANCEL-2, ORDER-CANCEL-3]

# mhproto/capabilities/orders/checks.yaml
checks:
  - id: ORDER-V-1
    title: Cancelling respects the order status
    rules: [ORDER-CANCEL-1, ORDER-CANCEL-2]
    examples: [ORDER-E-1]
    runner: node-test
    testNames:
      - ORDER-CANCEL-1 cancels a pending order
      - ORDER-CANCEL-2 refuses to cancel a shipped order
    command: [node, --test, --test-reporter, '{mhprotoNodeReporter}', test/orders.test.js]
    files: [test/orders.test.js]

npx mhproto check validates every reference, schema and example payload. It exits non-zero on a broken link, so you can run it in CI.

Already have the code? Ask your agent to "use mhproto-discover to draft a contract for the orders API". It drafts rules from the existing code and marks each one as confirmed, inferred or unknown, with the source paths it used.

2. Review it in a browser

npx mhproto view     # http://127.0.0.1:4317, refreshes as you edit

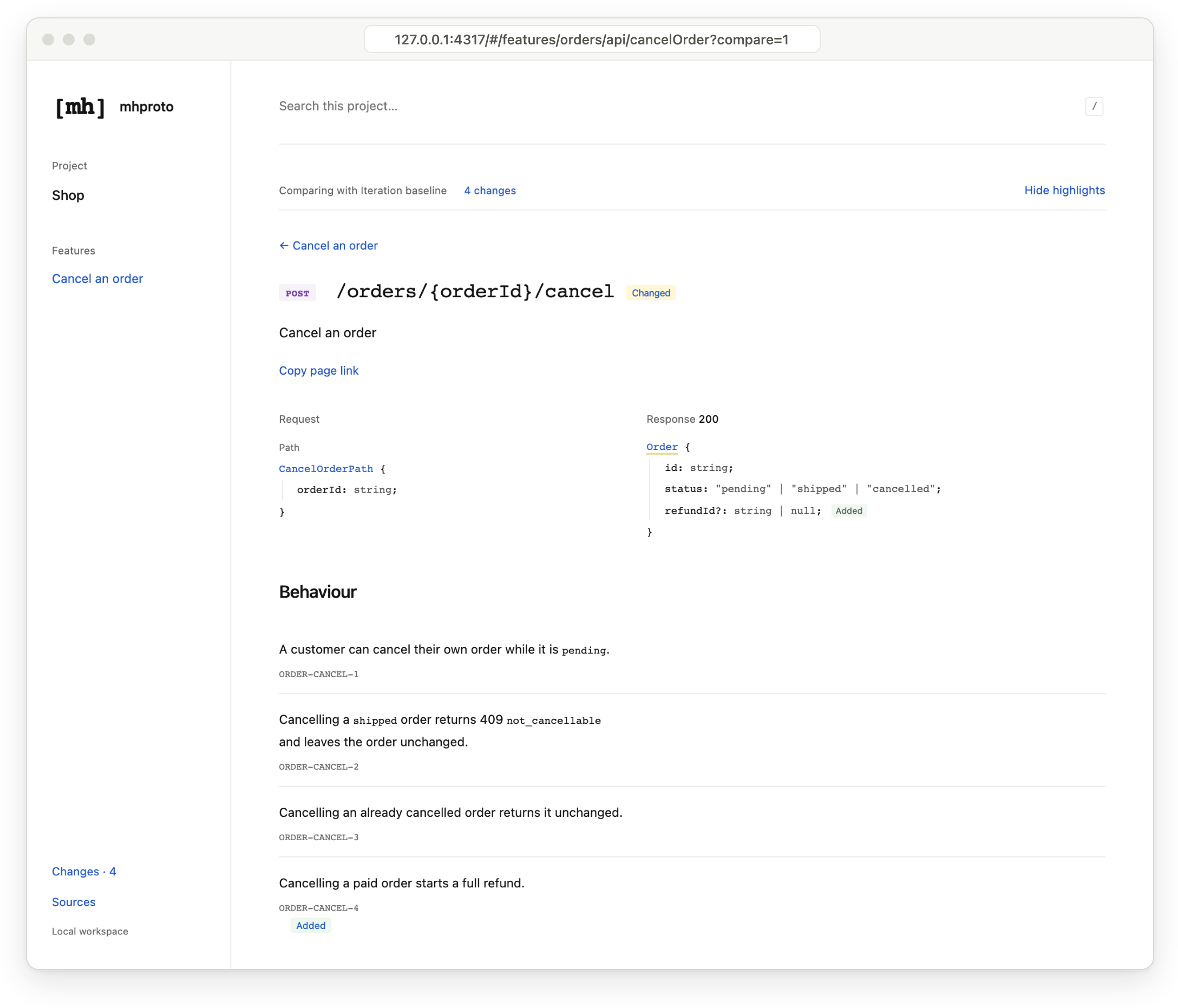

Suppose the team then adds rule ORDER-CANCEL-4 ("Cancelling a paid order starts a full refund") and a refundId field. After npx mhproto snapshot and those edits, the endpoint page shows exactly what changed:

• One page per feature, endpoint and type. Each endpoint page shows its request, response, rules, errors, examples and checks together. Each type's page lists every endpoint that uses it.
• Changes since the last iteration. Run npx mhproto snapshot, edit the contract, then review what was added, changed or removed, marked inline as above.
• Design references. Attach screenshots, PDFs or design links to a rule, an example or a request/response header.
• Share without a server. npx mhproto build exports one self-contained viewer.html.

3. Give your agent the relevant context

init installs five agent skills in your repository (.claude/skills with --agent claude, .agents/skills with --agent codex). Once the change is agreed, hand it over:

Use mhproto-implement to add ORDER-CANCEL-4 to cancelOrder, then run mhproto verify.

The skills tell the agent to fetch only the part it is changing, rather than the whole contract:

$ npx mhproto context --capability orders --operation cancelOrder

// Excerpt. The real output is one line of JSON.
{
  "operation": { "operationId": "cancelOrder", "method": "POST", "path": "/orders/{orderId}/cancel" },
  "request": { "parameters": [{ "name": "orderId", "in": "path", "required": true, … }] },
  "response": { "200": { "schema": { "name": "Order", "required": ["id", "status"], … } } },
  "behaviour": {
    "rules": [
      { "id": "ORDER-CANCEL-1", "text": "A customer can cancel their own order while it is `pending`." },
      …
      { "id": "ORDER-CANCEL-4", "text": "Cancelling a paid order starts a full refund." }
    ]
  },
  "errors": { "cases": [{ "status": "409", "when": "The order has shipped" }], … },
  "examples": [{ "id": "ORDER-E-1", "given": "Order A-17 has shipped.", … }],
  "checks": [{ "id": "ORDER-V-1", "rules": ["ORDER-CANCEL-1", "ORDER-CANCEL-2"], "status": "passing" }]
}

Packets are assembled by code, not summarised by a model, so rule text stays exact. Nested types and rule groups are fetched on demand. A packet over its size budget fails with guidance; it is never silently truncated. In the pilot behind the demo, one endpoint's packet was 8.5K characters, against 130K for the whole project model. That is text size, not a token or billing figure; see the measurements.

4. Verify

$ npx mhproto verify --capability orders
Running 1 checks for orders
PASSING ORDER-V-1 (54ms)

verify runs each check's command without a shell and stores the result with a digest of the contract and tracked files. Each check is in one of four states, shown in the viewer and in endpoint packets:

Per-test evidence uses Node's built-in test runner (runner: node-test). Other runners, such as Jest, Vitest or pytest, work as plain commands, where passing means exit code 0.

Rules with no linked check are listed as gaps in the viewer and by check, so the next task is obvious:

$ npx mhproto check
Shop: 1 capability, 4 rules, 1 operations
WARNING [orders] ORDER-CANCEL-3 has no linked executable check
WARNING [orders] ORDER-CANCEL-4 has no linked executable check
0 errors, 2 warnings

Agent skills

The skills are plain SKILL.md files inside your repository: read them, edit them and commit them. Your global agent settings stay unchanged.

FAQ

Do I have to describe my whole app? No. Start with one feature. The demo app describes two of its features (the larger has 32 rules, 6 endpoints and 23 linked checks); the rest of that app keeps its existing docs.

Which agents does it work with? Skills are included for Claude Code and Codex. Any agent that can run a shell command can use mhproto context, check and verify.

Does it generate code or tests? No. Your agent writes the code and tests as usual. MHProto gives it the agreed contract and records the evidence.

Why not just keep a spec file my agent reads? Nothing checks a plain spec file. check fails when an operation, example or check cites a rule that doesn't exist. context returns only the rules linked to the endpoint being changed. verify ties results to file digests, so later edits show up as stale.

How is this different from OpenAPI docs? OpenAPI describes the shapes. MHProto adds the behaviour rules, examples and test evidence around those shapes, links them all by ID, and gives agents scoped slices.

Good to know

• Deterministic. Packets, checks and diffs are computed from your files by code. Runtime dependencies are yaml, ajv and ajv-formats.
• CI-friendly. npx mhproto check exits non-zero on contract errors, and npx mhproto verify --capability ID exits non-zero when a check fails. Stale evidence is a warning, not an error.
• Works with your schemas. MHProto reads OpenAPI 3.1 with local references and JSON Schema 2020-12 payloads. Keep generating types with your current tools.
• Evidence, not proof. A passing check means its command, and any named tests, passed against the current files. It does not prove every case of a rule.
• Runs your commands. verify executes the argv commands from checks.yaml without a shell or a sandbox. Only run it in repositories you trust.
• Review before sharing. build exports omit captured output, failure messages and the absolute project path. They keep contract text, check commands and their env values, and attachments.
